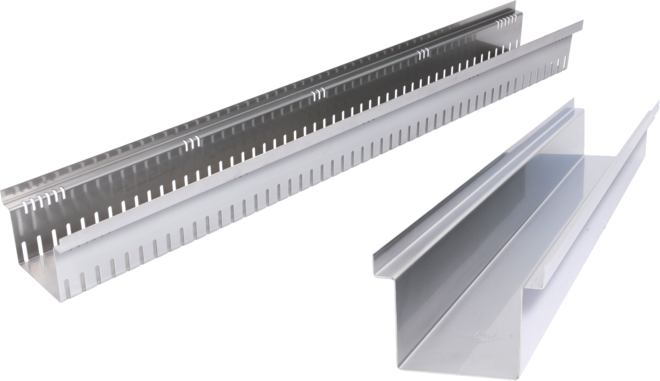

Drainage and dewatering channel Stabile
- used as a drainage or dewatering channel
- ideal for use on terraces and balconies or as a façade channel
- grating supports turned outwards create an open space for the concave profile of the wall connection
- individual inlet widths and installation heights possible on request
- large selection of compatible gratings
![[Translate to Englisch:]](/fileadmin/user_upload/produkte/Stabile/Online/drainagerinne-entwaesserungsrinne-stabile-richard-brink.png)
![Vorschaubild: [Translate to Englisch:]](/fileadmin/_processed_/b/c/csm_2_Stabile_Drainagerinne_Entwaesserungsrinne-RichardBrink-01_1c70139f0b.png)
Order online
Available in shop
Standard sizes available in 2 to 3 business days
Special sizes available in 5 to 20 business days

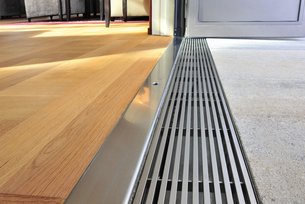

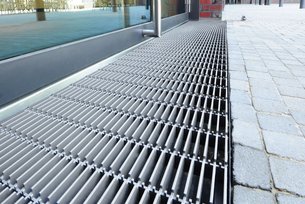

Our Stabile channel is available as both a dewatering and a drainage channel with a fixed installation height and projecting grating support. It is one of our go-to solutions when it comes to creating a reliable drainage or dewatering system and is used above all on terraces and balconies or as a façade channel. Similar to the height-adjustable Hydra drainage channel, the outwards-facing grating supports also function as a spacer between the channel and the wall, creating an open space for the concave profile of the wall connection.

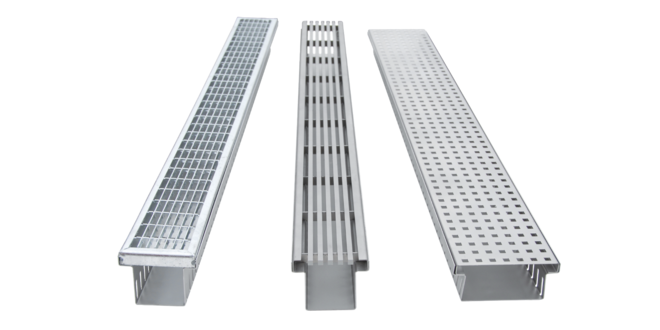

Available in either hot-dip galvanised steel or stainless steel, we supply the Stabile in a range of inlet widths and channel heights. As is the case with many of our products, you can order the drainage channel as a bespoke product with inlet widths and installation heights that meet your specific needs. The channel is available in a length of 1,000mm as standard and can be extended as needed using connector pairs. Custom lengths of up to 3,000mm can be produced for this model, too. Combined with one of a number of grating covers from our range of products, you will find the right solution for every installation situation.
Drainage and dewatering channel Stabile |
|
|---|---|
|
Inlet widths |
100 mm 140 mm 160 mm 200 mm 250 mm** **only applies to drainage channels |
|
Lengths |
1.000 mm up to 3.000 mm one-piece possible |
|
Heights |
21,5 mm* 40 mm 50 mm 60 mm 80 mm 100 mm *only for inlet widths 100 und 140 mm |
|
Material |
Stainless steel (V2A) 1.5 mm Hot-dip galvanised steel 1.5 mm |
|
Info |
Corners possible Individual partitioning possible Individual inlet widths and installation heights possible |
|
Accessories |
End pieces Connector pair / U-connector Pair of corner connectors** Grate locking **only applies to drainage channels |
