Channel Bangkirai

  • specially developed to meet the requirements of balcony and terrace drainage
  • low installation height to fit conventional terrace flooring
  • continuous rows of holes along the base to secure to the substructure
  • extensive range of gratings to cover the channel
  • custom dimensions possible on request

Order online

Available in shop

Standard sizes available in 2 to 3 business days

Special sizes available in 5 to 15 business days

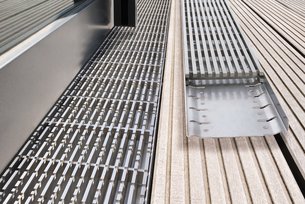

Our “Bangkirai” channel is excellent for integration both in terrace flooring made of Bangkirai (also known as Balau) wood and in other flooring materials such as aluminium terrace floorboards. This type of channel quickly diverts the larger amounts of precipitation which can collect on window façades, for example, down to the sealing and drainage levels in the substrate. The low installation height of the stainless steel channel, which measures just 25 mm, matches the conventional material thickness of many terrace flooring options and therefore forms a consistent, flush transition in the flooring. Continuous rows of holes on the channel bottom make it very easy to screw the drainage system onto the scantlings of the substructure.

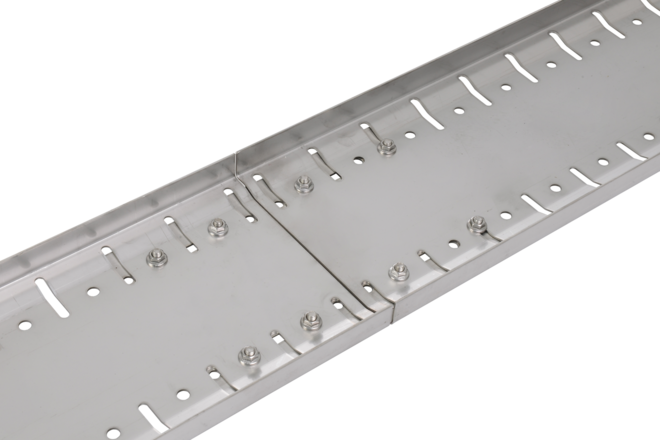

The Bangkirai channels are manufactured in 3 m lengths as standard and can be extended to any length desired using connectors. The standard inlet widths are 100, 140 and 160 mm. In addition, we also offer custom channel lengths according to customer requirements. The same flexibility also applies to custom inlet widths and heights.

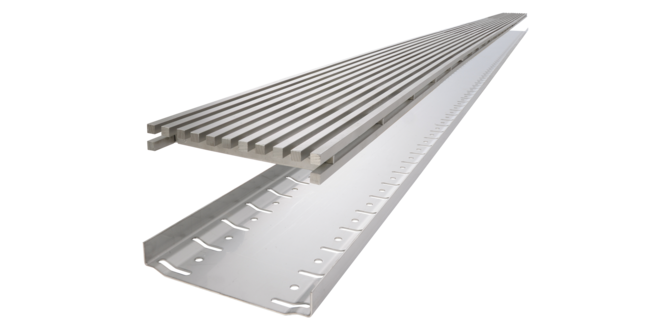

There is a choice of 20 designer gratings available to cover the channel, creating a striking visual feature through the material contrast to the wood.




Drainage channel for wooden decking Bangkirai

Inlet widths

100 mm

140 mm

160 mm

Lengths

3.000 mm

Special lengths under 3,000 mm possible

Heights

25 mm

Material

Stainless steel (V2A) 1.5 mm

Info

Individual inlet widths and installation heights possible

Accessories

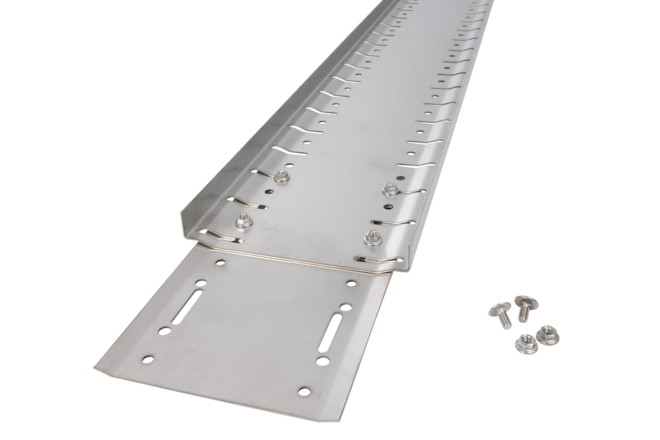

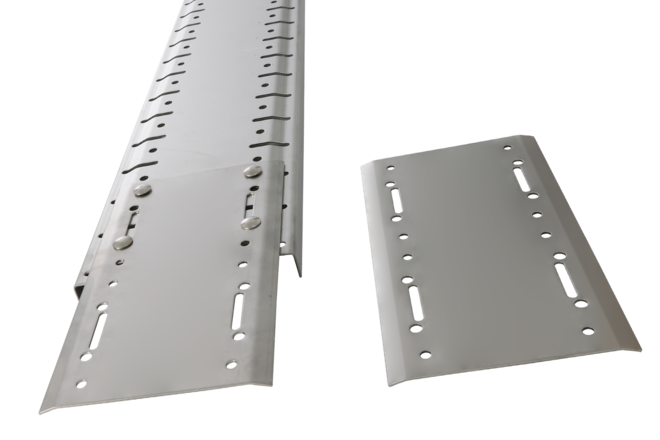

Pair of connectors




Connector
Connector
Outside corner
Outside corner
[Translate to Englisch:] Für die Edelstahl Terrassenrinne sind Roste in 20 verschiedenen Designs von Richard Brink erhältlich

Channel Bangkirai
