Shower channel Elix

The custom-made channel for every shower unit

  • Manufactured in standard and custom dimensions and to fit the preferred tile grid
  • Aligned with the ground and height-adjustable thanks to articulated feet
  • Different connection types available: floor connection, wall connection either along the channel’s length or at either end, corner wall connection or niche wall connection
  • Wide range of suitable gratings


Any questions? We are happy to help personally!

+49 5207/9504-5241 request@richard-brink.com

Modern showering comfort is characterised, among other things, by floor-level transitions, perfectly fitting products and high-quality materials. Accessibility has long been a key talking point, irrelevant of age or mobility, as it generally gives shower areas a contemporary look and feel, with all elements coming together flawlessly. High quality and perfect fit best describe our Elix shower channel. We manufacture the channel not only in standard dimensions, but also entirely in line with your individual measurements. This is how we make sure that the shower channel fits every niche and every design concept.
We offer the Elix in different versions, with various upstand positions to fit different wall connections. Moreover, the channel’s height can be adjusted between 93mm and 120mm using stilt supports. On request, we can also add drainage holes for the second drainage level. Compatible stainless steel surfaces, bar gratings or tile trays work well as covers for a harmonious result.

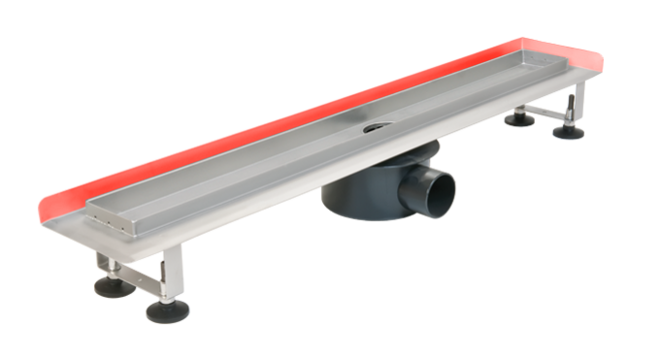

Shower channel Elix

Inlet widths



70 mm

Inlet lengths



600 mm

700 mm

800 mm

900 mm

1.000 mm

1.200 mm

1.500 mm

Height ranges



93 - 120 mm

Materials



Stainless steel (V2A) 1.5 mm

Details



Individual inlet lengths possible

Special shapes such as angled corners or diagonal corners possible

Sealing sleeve included

Large selection of gratings







Technical data sheet

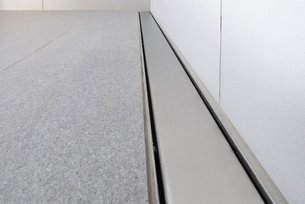

Elix shower channel in use
