Silex Max separation profile

Effective protection against spray and rain for building façades
2mm-thick profile to hold gravel fills
Reliable separation between fill and surrounding area
Drainage slit to drain excess water
Additional grating supports with mesh gratings available for door areas

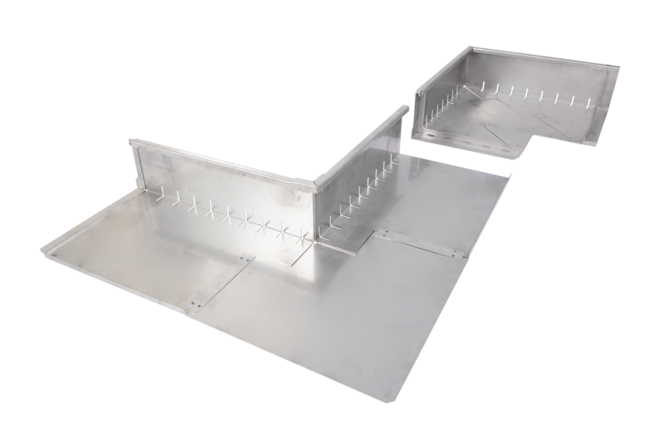

Available with internal and external corners

Gravel strip with individual dimensions for eaves strips

With drainage slots to protect the façade from accumulating water

Available with various grilles for barrier-free door areas

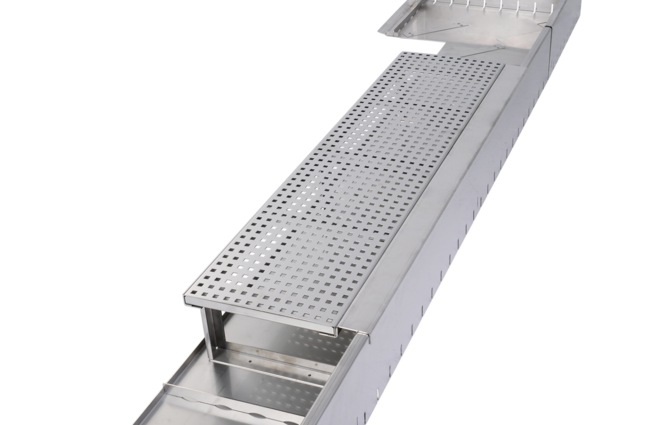

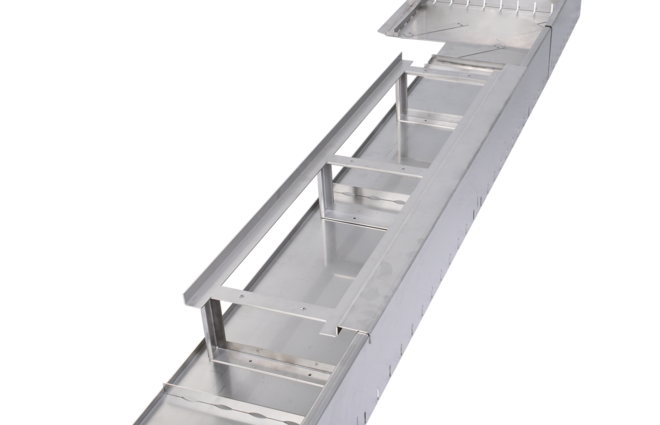

With grate supports for barrier-free transition between eaves strip and entrance area — The grate support can optionally be added to bridge the eaves strip

Vorschaubild: With grate supports for barrier-free transition between eaves strip and entrance area

Personal advice

request@richard-brink.com

+49 5207/9504-5241

Find contact person

Description

The separation profile that protects your façade

The base of a building can be protected from moisture damage caused by precipitation by installing a suitable drip strip. This ensures that accumulating water can seep away before it reaches the façade. At the same time, a house surround of this type affords crucial splash protection for plaster and brick façades – mostly with the aid of stone fills.

Drip strip – our solution for your house surround

Our Silex Max separation profile makes the installation of such a drip strip straightforward while also guaranteeing a clear separation between the gravel fill and any surrounding paved or planted area. The profiles with a material thickness of 2mm are installed directly by the façade. Their integrated wall anchors and connectors guarantee ease of installation. The gravel can then be added between the façade and the upstand. With the gravel held securely in the edge section, excess water can flow away into the surrounding area through drainage slits. Lawn or paved areas can extend right up to the profile.

Separation profile – a tried-and-tested formula reimagined

A stable grating support with a frame into which matching mesh gratings can be fitted is available for door areas, guaranteeing barrier-free access to the entrance area via the drip strip. Our solution is made from steel and uses fewer materials, is easier to care for and enables more straightforward installation on the ground compared to conventional borders made from concrete or stone slabs.
