Gravel stops Silex

to contain loose fills
directs excess water away in a controlled manner
available in fixed or height-adjustable versions
Silex available in four different adjustment ranges
Silex Fix: variant with click connectors
custom measurements possible

Zum Video

Product image of the "Silex Fix" gravel stop bar from Richard Brink with fixed height with punched-out holes for welding or without punched-out holes — Gravel stop strip "Silex Fix" in the fixed heights 60 mm, 80 mm, 100 mm

Silex Fix gravel stop bar from Richard Brink in fixed height with three edges made of aluminum or stainless steel V2A — Gravel bar in fixed height with three edges made of aluminum or stainless steel V2A

Silex Fix gravel strip from Richard Brink made of aluminum or stainless steel V2A with cut-outs for gluing or welding to the roof waterproofing — "Silex Fix" with round cut-outs for welding or gluing

Click connector for the Silex Fix gravel stop bar from Richard Brink for easy connection without tools — Click connector for easy extension without tools

Height-adjustable Silex aluminum gravel stop from Richard Brink with screws for height adjustment — Height-adjustable gravel stop bar "Silex" in heights from 60 - 270 mm

Silex height-adjustable gravel stop strip from Richard Brink with round cut-outs for gluing or welding the gravel strip to bitumen sheets — With round recesses for gluing or welding the gravel strip to bitumen sheets

Height-adjustable outer corner as an accessory for the "Silex" gravel stop from Richard Brink — Height-adjustable outer corner as an accessory for the "Silex" gravel stop rail

Inside corner as a height-adjustable accessory for the Silex gravel bar from Richard Brink — "Silex" accessories: height-adjustable inner corner

Vorschaubild: Product image of the "Silex Fix" gravel stop bar from Richard Brink with fixed height with punched-out holes for welding or without punched-out holes

Vorschaubild: Silex Fix gravel stop bar from Richard Brink in fixed height with three edges made of aluminum or stainless steel V2A

Vorschaubild: Silex Fix gravel strip from Richard Brink made of aluminum or stainless steel V2A with cut-outs for gluing or welding to the roof waterproofing

Vorschaubild: Click connector for the Silex Fix gravel stop bar from Richard Brink for easy connection without tools

Vorschaubild: Height-adjustable Silex aluminum gravel stop from Richard Brink with screws for height adjustment

Vorschaubild: Silex height-adjustable gravel stop strip from Richard Brink with round cut-outs for gluing or welding the gravel strip to bitumen sheets

Vorschaubild: Height-adjustable outer corner as an accessory for the "Silex" gravel stop from Richard Brink

Vorschaubild: Inside corner as a height-adjustable accessory for the Silex gravel bar from Richard Brink

Order online

Available in shop

Standard sizes available in 2 to 3 business days

Special sizes available in 5 to 15 business days

Order now

Personal advice

request@richard-brink.com

+49 5207/9504-5241

Find contact person

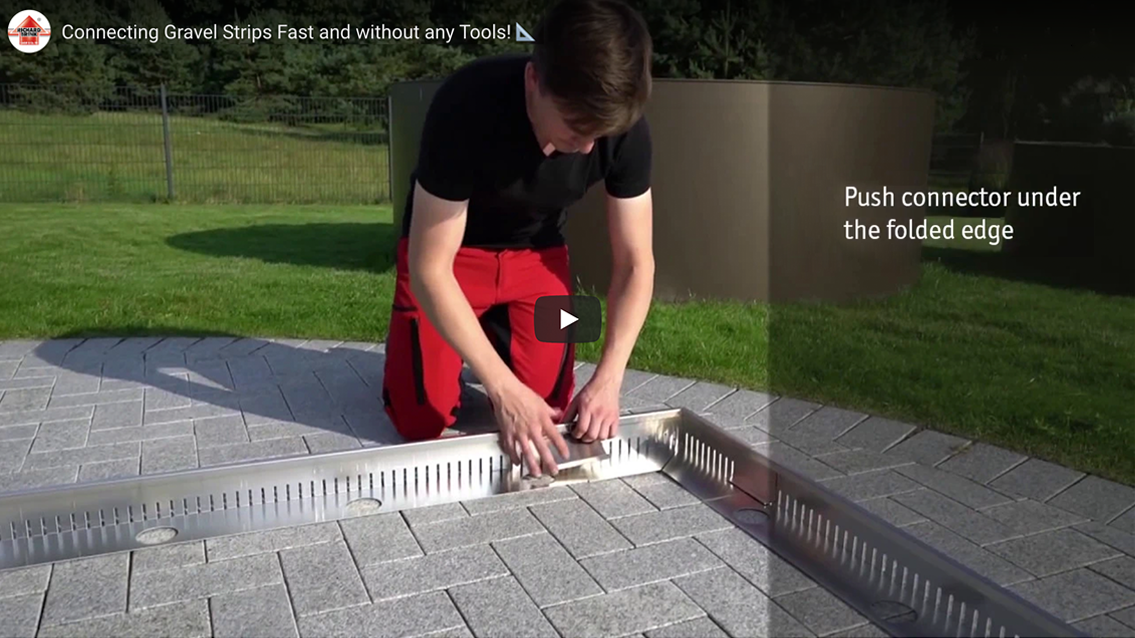

[Translate to Englisch:] Ein Mitarbeiter von Richard Brink zeigt wie die Kiesfangleiste Silex Fix aufgebaut wird und mit Klickverbindern verbunden wird

Hochwertige Kiesfangleisten für Bau von Terrassen oder Balkonen

Description

Where fills are used on one side of outdoor spaces such as balconies or terraces, we recommend installing gravel stops to establish clear, long-lasting demarcation. We produce our Silex gravel stops from aluminium and stainless steel. The steplessly height-adjustable Silex model is available in four different adjustment ranges, while the fixed Silex Fix model can be extended at will using click connectors. We also produce gravel stops in heights beyond our standard version to meet individual project specifications.

Data & Dimensions

Gravel stop bar Silex Fix

with 3 bends

Upper back edge

15 x 15 mm

Heights

60 mm

80 mm

100 mm

Default lengths

3.000 mm

Materials

Stainless steel (V2A) 1.0 mm

Aluminum 1.5 mm

Details

Corners possible

Special dimensions possible

Powder coating in RAL colors possible

With click connectors on request

With 60 mm diameter cut-outs in the support surface

Gravel stop bar Silex height adjustable

with 2 bends

Heights

60 - 100 mm

80 - 130 mm

100 - 170 mm

150 - 270 mm

Default lengths

3.000 mm

Materials

Stainless steel (V2A) 1.0 - 2.0 mm

Aluminum 1.5 - 3.0 mm

(material thickness depends on height adjustment range)

Details

Corners possible

Special dimensions possible

Powder coating in RAL colors possible

With connectors and corner connectors on request

With 60 mm diameter cut-outs in the support surface
